Fernco XL Couplings - Extra Length for Extra Strength

  1. Products
  2. Shielded Couplings
  3. XL Couplings

Create greater confidence in your extreme condition pipe connections.

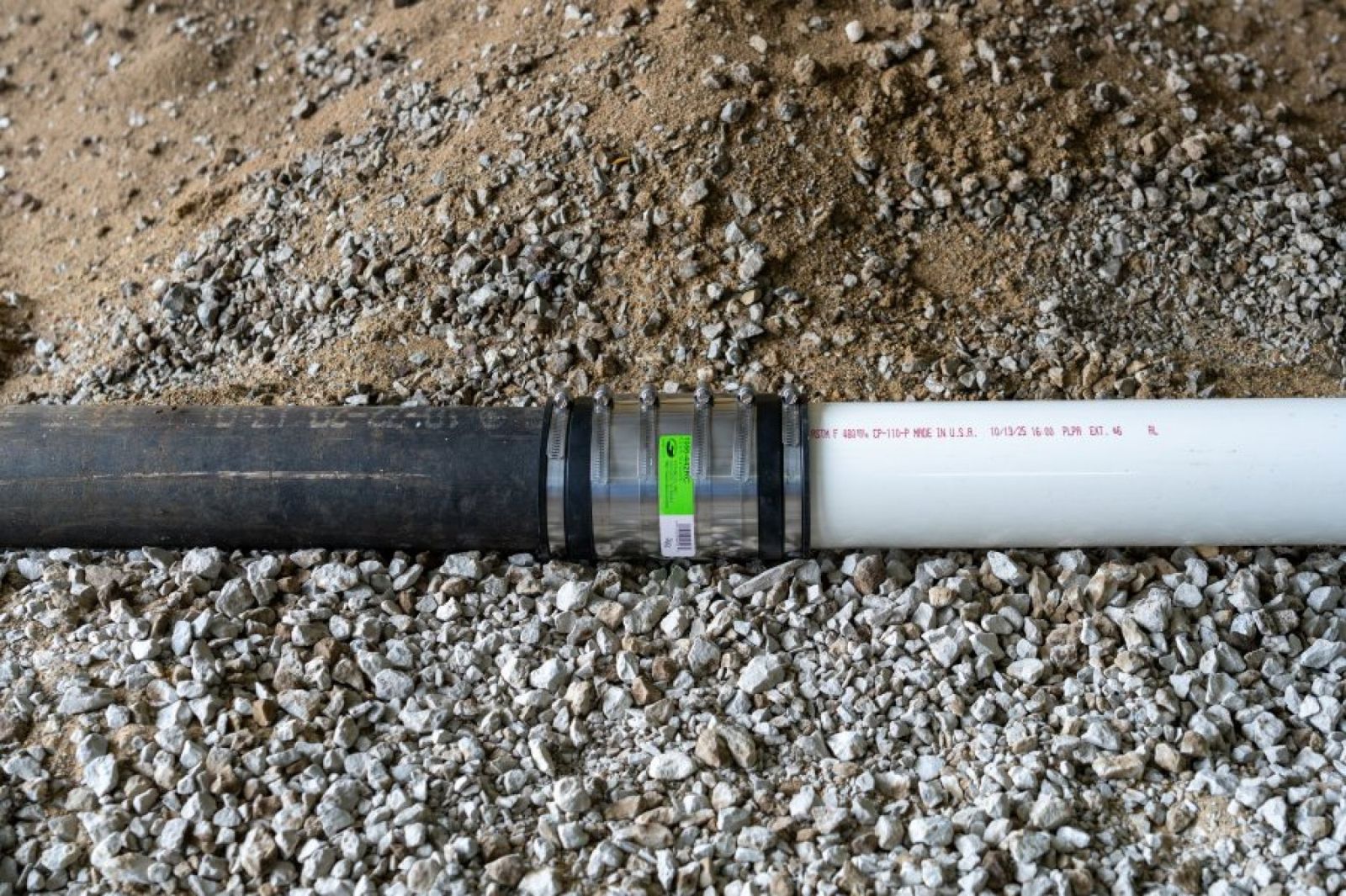

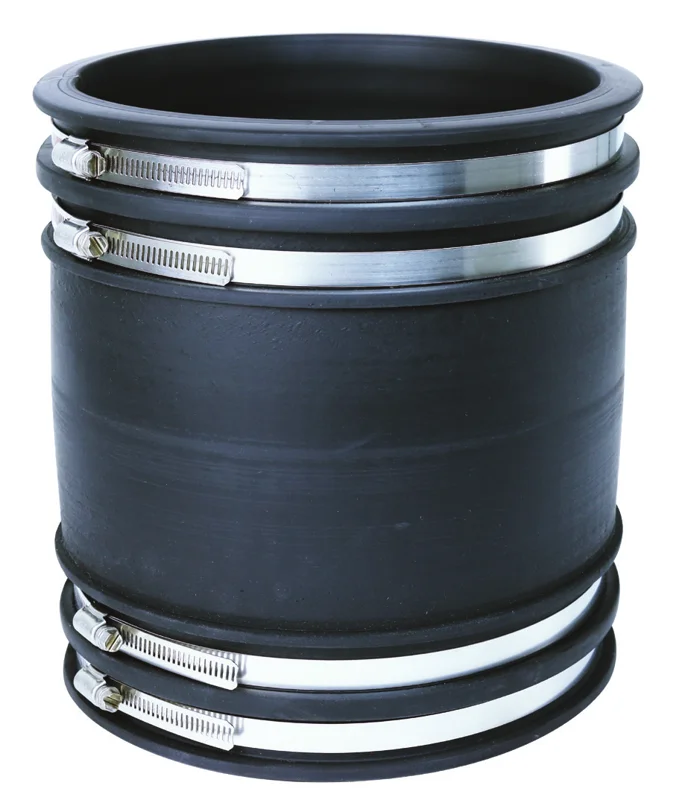

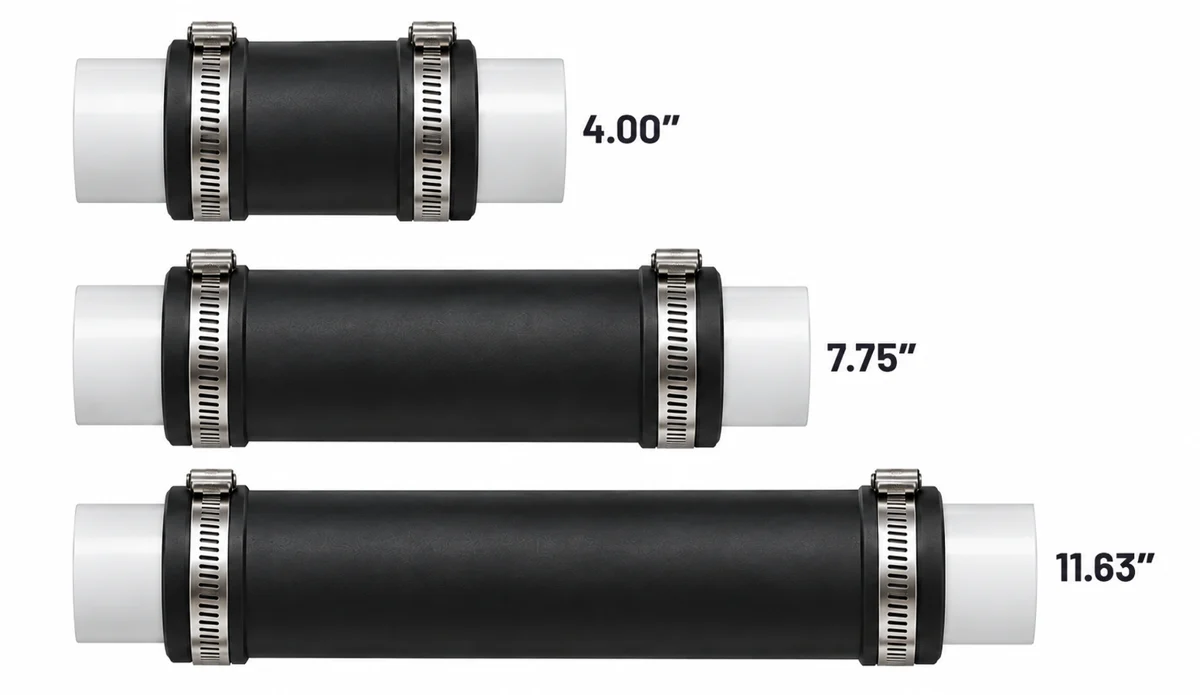

The Fernco XL Coupling is built longer to be stronger, and more durable than any other coupling in the market.

Technical Specs

Gasket

  • Manufactured to the requirements of:
    - ASTM C 1173
    - ASTM D 5926
    - CSA B602
  • Hardness, Shore “A”, Inst. -+5..............65
  • Tensile Strength, Min. psi................1000
  • Elongation at Rupture, Min. %.........250
  • Tear Strength, Min.....................150 in/lb.
  • Brittleness Temperature................. -40°F

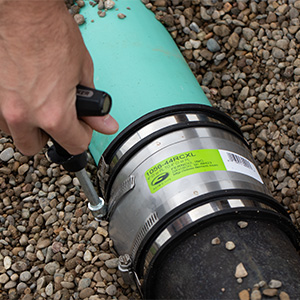

Clamps

  • 300 Series Stainless Steel
  • Installation torque.......................60 in/lb.

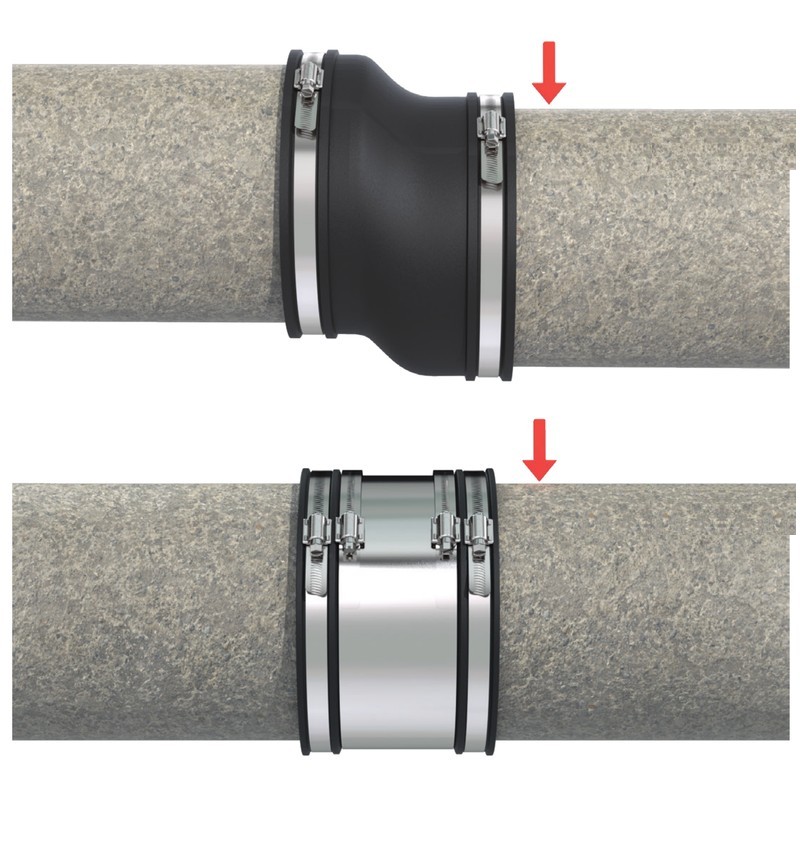

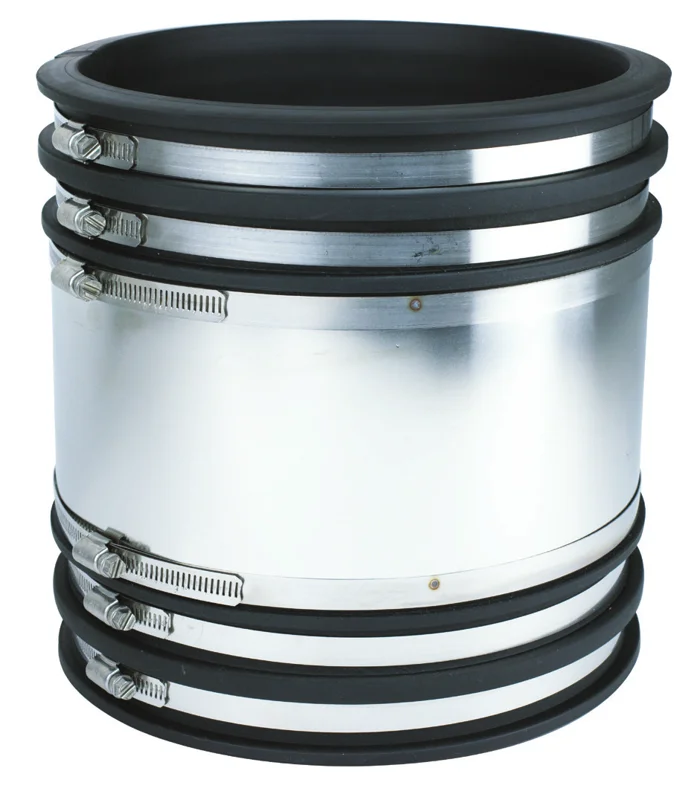

Shear Ring

  • .012” thick, 300 Series Stainless Steel

Couplings

  • Manufactured to the requirements of:
    - ASTM C 1173
ES PMG Certification for Canada
Shielded Couplings Measurements

Models
    A B C
Part No. Description in mm in mm in mm

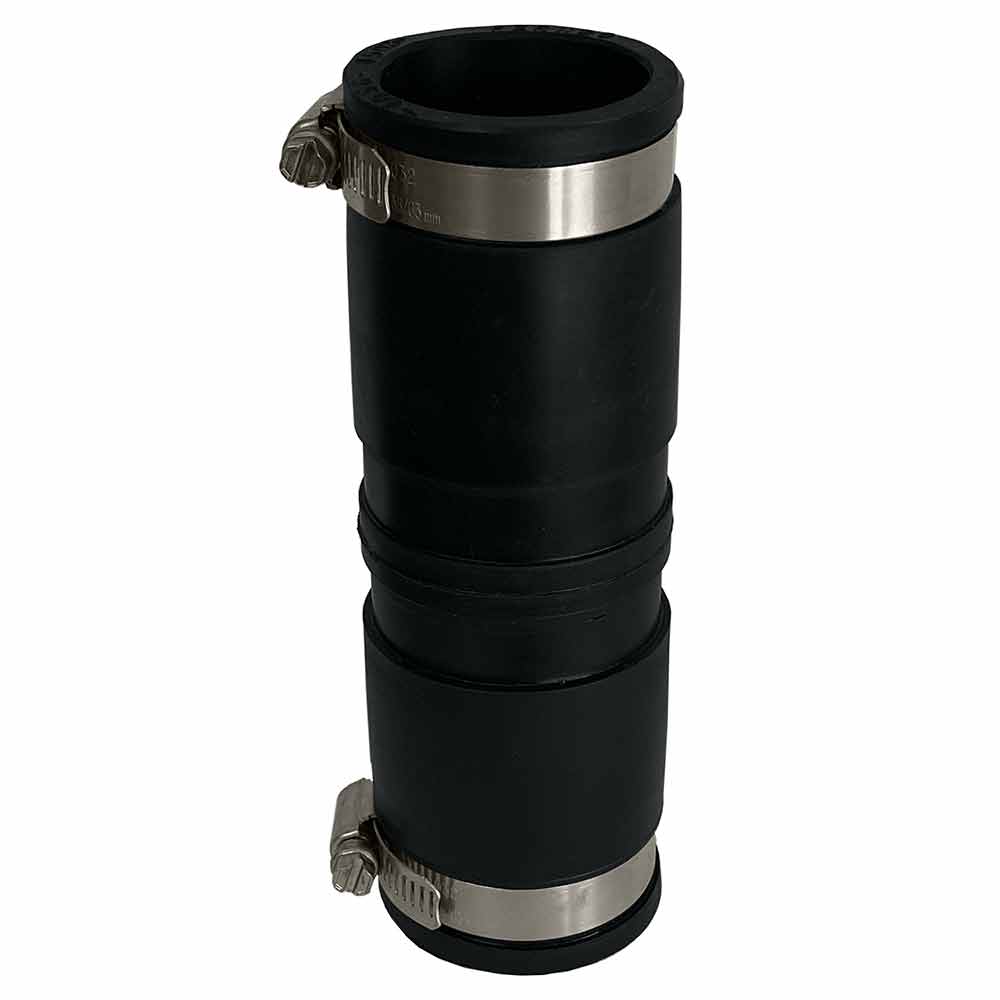

*1056-1502 1 1/2” CI/Plastic/Steel to 1 1/2” CI/Plastic/Steel 1.90 48 1.90 48 6.88 175
*1056-1502RC 1 1/2” CI/Plastic/Steel to 1 1/2” CI/Plastic/Steel 1.90 48 1.90 48 6.88 175

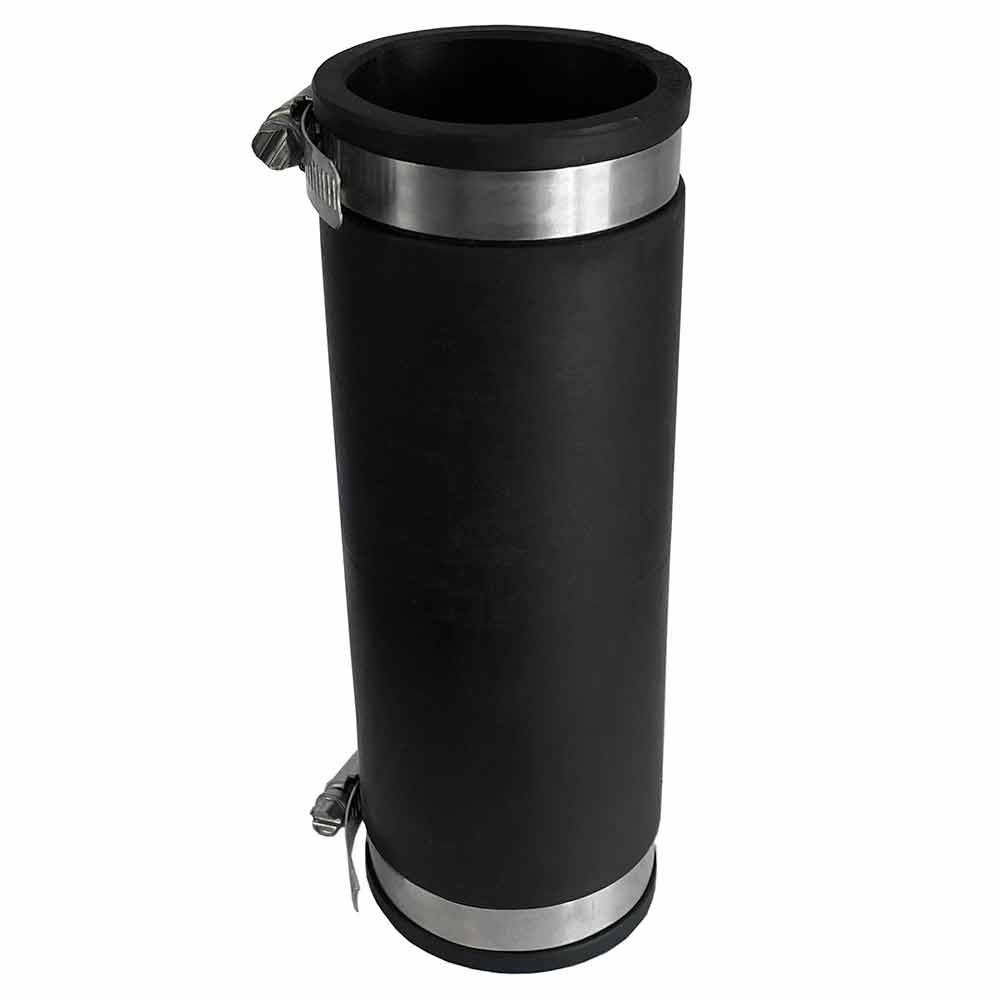

*1056-222 2” CI/Plastic/Steel to 2” CI/Plastic/Steel 2.38 60 2.38 60 7.75 197
*1056-222RC 2” CI/Plastic/Steel to 2” CI/Plastic/Steel 2.38 60 2.38 60 7.75 197
*1056-332 3” CI/Plastic/Steel to 3” CI/Plastic/Steel 3.40 86 3.40 86 7.75 197
*1056-332RC 3” CI/Plastic/Steel to 3” CI/Plastic/Steel 3.40 86 3.40 86 7.75 197

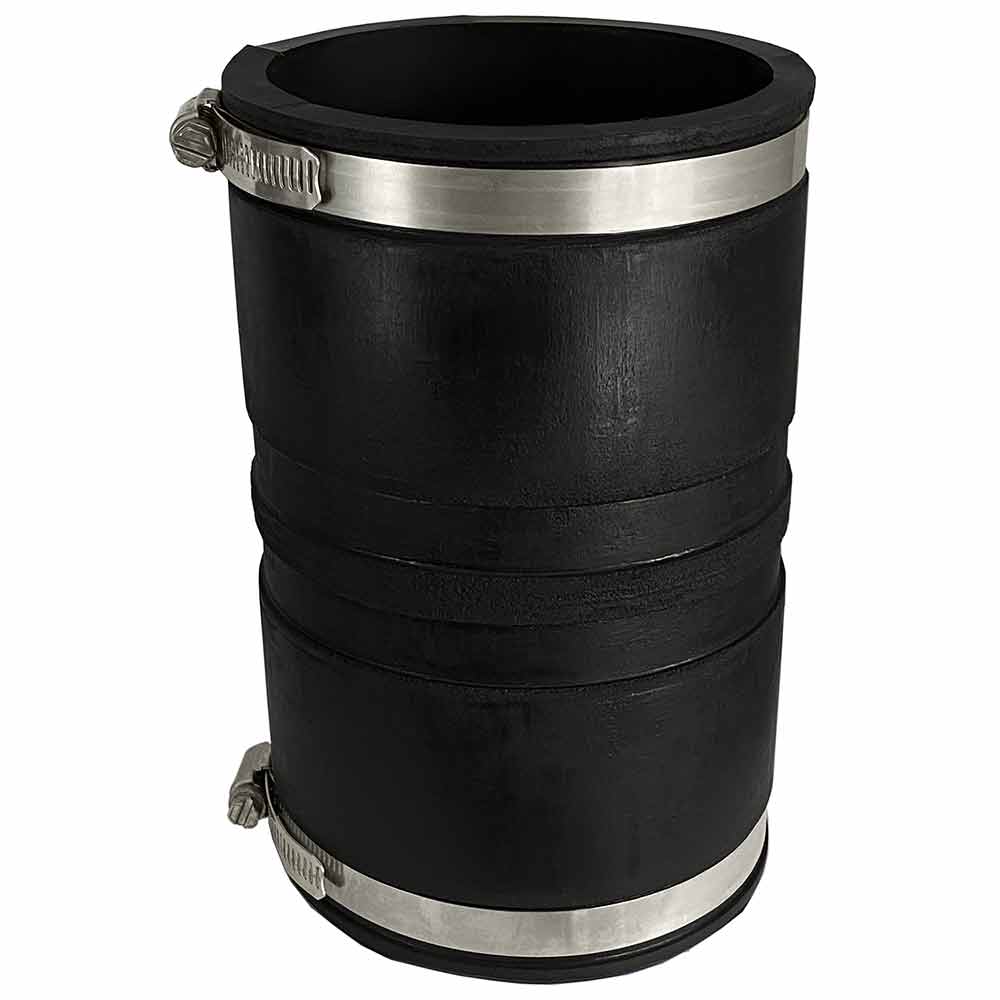

*1056-442 4” CI/Plastic/Steel to 4” CI/Plastic/Steel 4.40 112 4.40 112 7.75 197
*1056-442RC 4” CI/Plastic/Steel to 4” CI/Plastic/Steel 4.40 112 4.40 112 7.75 197
*1056-443 4” CI/Plastic/Steel to 4” CI/Plastic/Steel 4.40 112 4.40 112 11.63 295
*1056-443RC 4” CI/Plastic/Steel to 4” CI/Plastic/Steel 4.40 112 4.40 112 11.63 295
*1056-44RCXL 4” CI/Plastic/Steel to 4” CI/Plastic/Steel 4.38 115 4.38 115 5.02 128
*1056-552 5” CI/Plastic/Steel to 5” CI/Plastic/Steel 5.51 140 5.51 140 7.85 199
*1056-552RC 5” CI/Plastic/Steel to 5” CI/Plastic/Steel 5.51 140 5.51 140 7.85 199
1056-662 6” CI/Plastic to 6” CI/Plastic 6.63 168 6.63 168 10.00 254
1056-662RC 6” CI/Plastic to 6” CI/Plastic 6.63 168 6.63 168 10.00 254
1056-882 8” CI/Plastic to 8” CI/Plastic 8.64 219 8.64 219 10.00 254
1056-882RC 8” CI/Plastic to 8” CI/Plastic 8.64 219 8.64 219 10.00 254
1056-10102 10” CI/Plastic to 10” CI/Plastic 10.75 273 10.75 273 10.00 254
1056-10102RC 10" CI/Plastic to 10” CI/Plastic 10.75 273 10.75 273 10.00 254
1056-12122 12” CI/Plastic to 12” CI/Plastic 12.75 324 12.75 324 10.00 254
1056-12122RC 12” CI/Plastic to 12” CI/Plastic 12.75 324 12.75 324 10.00 254
1002-442RC 4" Clay to 4" Plastic/CI 5.40 137 4.50 114 10.00 254
1002-662RC 6" Clay to 6" Plastic/CI 7.50 191 6.60 168 10.00 254
1002-882RC 8" Clay to 8" Plastic/CI 9.65 245 8.65 220 10.25 260
1002-10102RC 10" Clay to 10" Plastic/CI 12.50 318 10.50 267 10.25 260
1002-12122RC 12" Clay to 12" Plastic/CI 14.50 368 12.50 318 10.25 260
